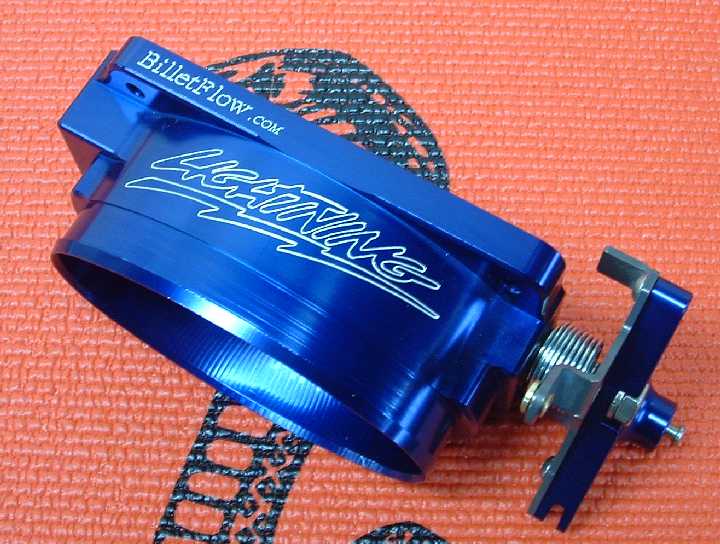

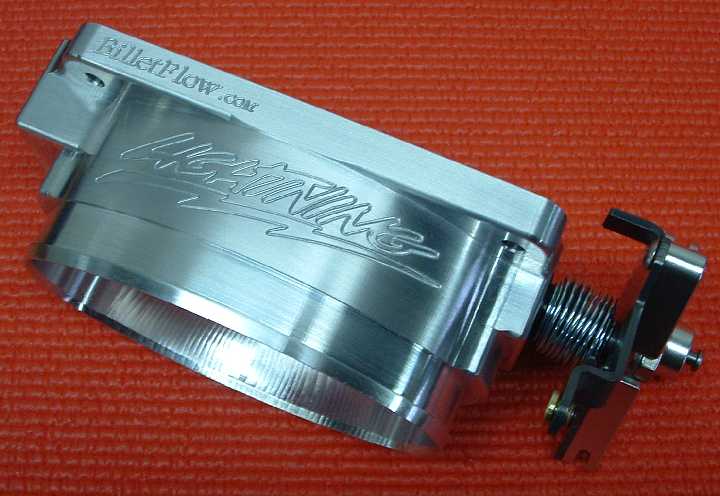

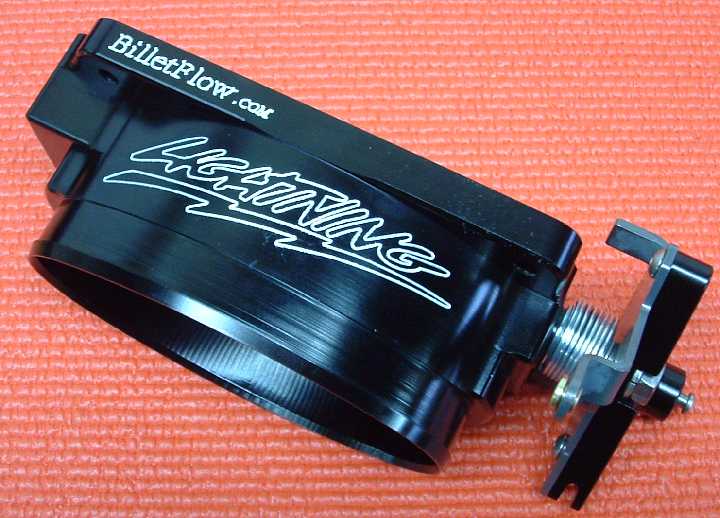

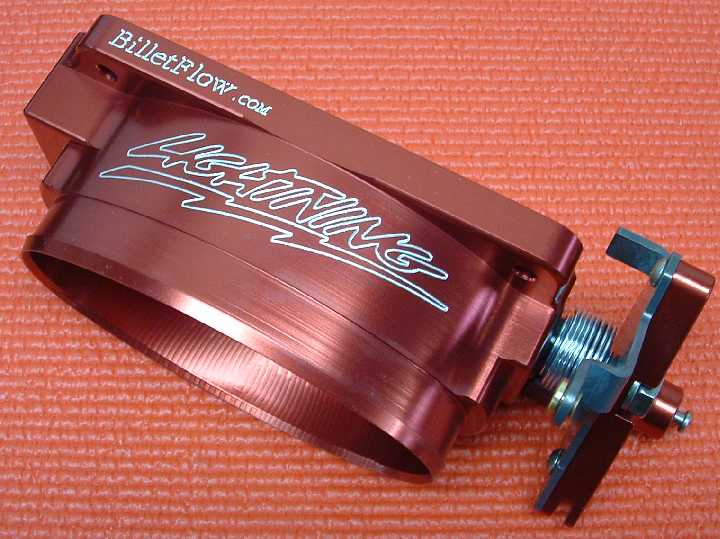

Throttle Body:
Housing:
Material: 6061-T6 Billet Aluminum
Process: CNC Machined
Coating: Anodized
Shaft:
Material: Steel
Process: CNC Machined
Coating: Teflon
Misc: Sealed Ball Bearing and “O” Rings for Durability and
Positive Vacuum Seal
Cam
Bracket:
Material: S.A.E. 1020 Carbon Steel
Process: Laser Cut and Die Formed
Coating: Teflon
Cruise Control Button:
Material: 304 Stainless Steel
Process: CNC Machined
Coating: N/A
Butterfly:
Material: 268 Yellow Brass
Process: CNC Machined
Coating: N/A
Misc:
Stainless Steel Fasteners
Custom Made Spring
Custom Made Throttle Body and Adapter Gasket
|
